Place of Origin : Guangdong, China (Mainland)
Model Number : YH68
Certification : CE
MOQ : 1 sample order
Price : the best price
Packaging Details : carton box for outer ,gift box for unit
Delivery Time : According to customers' need.
Payment Terms : T/T Western Union MoneyGram
Supply Ability : 8000 pcs per/month

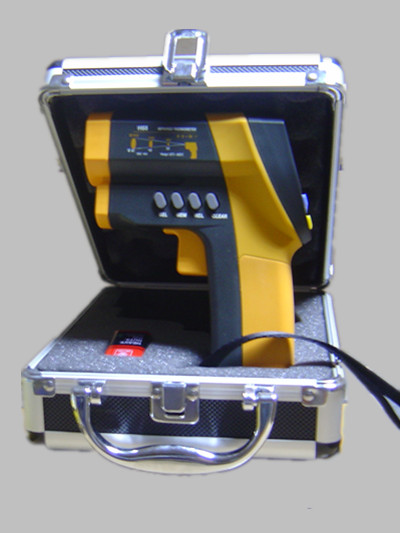

Wide Temperature Range Industrial Infrared Thermometer Laser Target Pointer , YH68
Quick Detail:
⊙ Optical Resolution (D:S) (30:1)
⊙ Wide temperature measurement range
⊙ Laser target pointer
⊙ ℃/℉ display selection
⊙ Temperature Resolution: 0.1 ℃ or 0.1℉
⊙ LCD with double temperature display and 4 bits
⊙ Emissivity adjustable:(0.10 to 1.00)
⊙ High-temp. And low-temp. Alarm.
⊙ Data recording (record up to 100 group of data)
⊙ Response time: 500 m Sec
⊙ Max (highest); Min(lowest); DIF(Max- Min) and AVG (average) temperature display
⊙ Laser Power: less than 1 milli watt
⊙ Optical Response: 8 μm to 14 μm
⊙ Back light
⊙ Working Voltage: 9V battery
⊙ Dimensions: 140×56×90mm
⊙ Weight: 500g
Specifications
|
Measurement range |
-32℃-850℃(-4°F~ 1562°F) |
|
Accuracy: |
±1%of reading or ±1℃(±2 °F)whichever is greater |
|
Resolution |
0.1°C |
|
Distance to Spot Ratio |
30 : 1 |
|
Emissivity |
Digitally adjustable from 0.10 to 1.0 |
|
Response Time |
500ms |
|
Repeatability |
±1%of reading or ±1 °C(±2 °F), whichever is greater |
|
Spectral Response |
8μm to 14μm |
|
Laser power |
Less than 1mW |
|
℃/℉display selection |
√ |
|
Data hold |
√ |
|
Display |
Back light LCD display |
|
Auto power off |
7 Seconds |
|
Low power indication |
|
|
Battery |
6F22 (9V) |
|
Weight |
500g |
|
Dimensions |
(140×190×56)mm |
|
|
